Techfine solar battery 12V 100AH Lead Acid Battery Short off grid

Name: Techfine solar battery 12V 100AH Lead Acid Battery Short off grid
Brand: Techfine
Rating: 5.0 (27 reviews)

Tips:

Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;

Applications：

All purpose

Uninterruptable Power Supply (UPS)

Electric Power System (EPS)

Emergency backup power supply

Emergency light

Railway signaAircraft signal

Alarm and security system

Electronic apparatus and equipment

Communication power supply

DC power supply

Auto controlsystem

pexels-binyamin-mellish-186077

Nominal Voltage	12V
Nominal Capacity(20HR)	100AH
Dimension	Length	406±3mm (15.98 inches)
	Width	174±2mm (6.85 inches)
	Container Height	215±2mm (8.46inches)
	Total Height (with Terminal)	233±2mm (9.17inches)
Approx Weight	Approx 28.6 kg(63.05lbs)

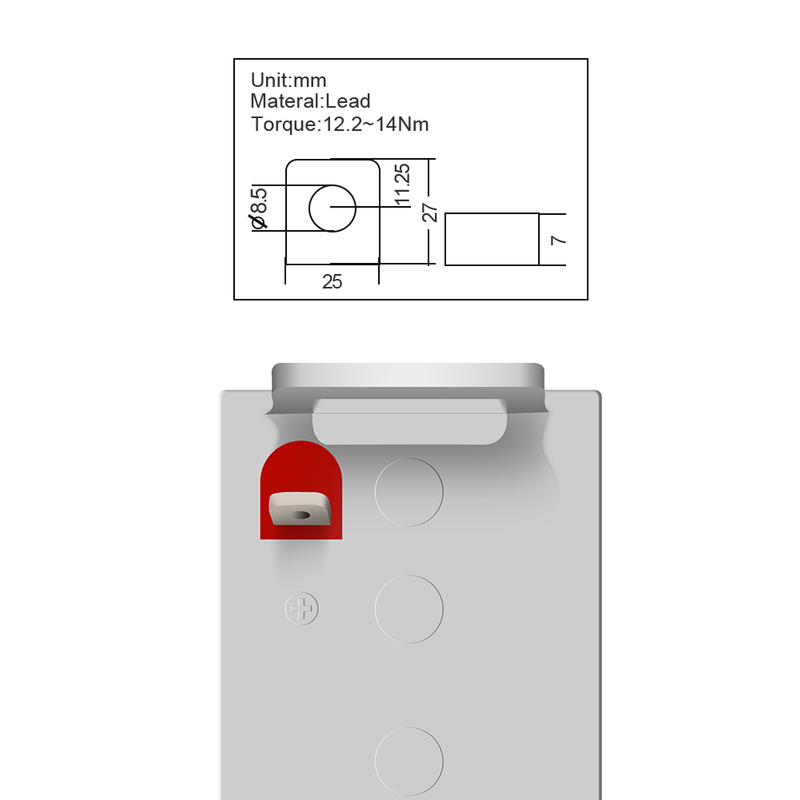

Terminal	T11 / T10
Container Material	ABS
Rated Capacity	104.0AH/5.20A	(20hr,1.80V/cell,25°C/77°F)
	100.0 AH/10.0A	(10hr,1.80V/cell,25°C/77°F)
	86.0 AH/17.2A	(5hr,1.75V/cell,25°C/77°F)
	78.0 AH/26.9A	(3hr,1.75V/cell,25°C/77°F)
	61.0 AH/61.0A	(1hr,1.60V/cell,25°C/77°F)
Max. Discharge Current	1200A (5s)
Internal Resistance	Approx 4.8mΩ
Operating Temp.Range	Discharge:-15~50℃ (5~122°F)
	Charge: 0~40°C(32~104°F)
	Storage:-15~40°C(5~104°F)
Nominal Operating Temp. Range	25 ±3°C(77±5°F)
Cycle Use	lnitial Charging Current less than 30.0 A.Voltage
	14.4V~15.0V at 25℃(77°F)Temp.Coefficient -30mV/℃
StandbyUse	No limit on Initial Charging Current Voltage
	13.5V~13.8V at 25℃(77F)Temp.Coefficient -20mV/℃
Capacity affectedby Temperature	40°C （104°F）	103%
	25℃（77°F）	100%
	0℃（32°F）	86%
Self Discharge	Techfine batteries may be stored for up to 6monthsat 25°C(77°F)and then a freshening charge is required. Forhigher temperatures the time interval will be shorter.
