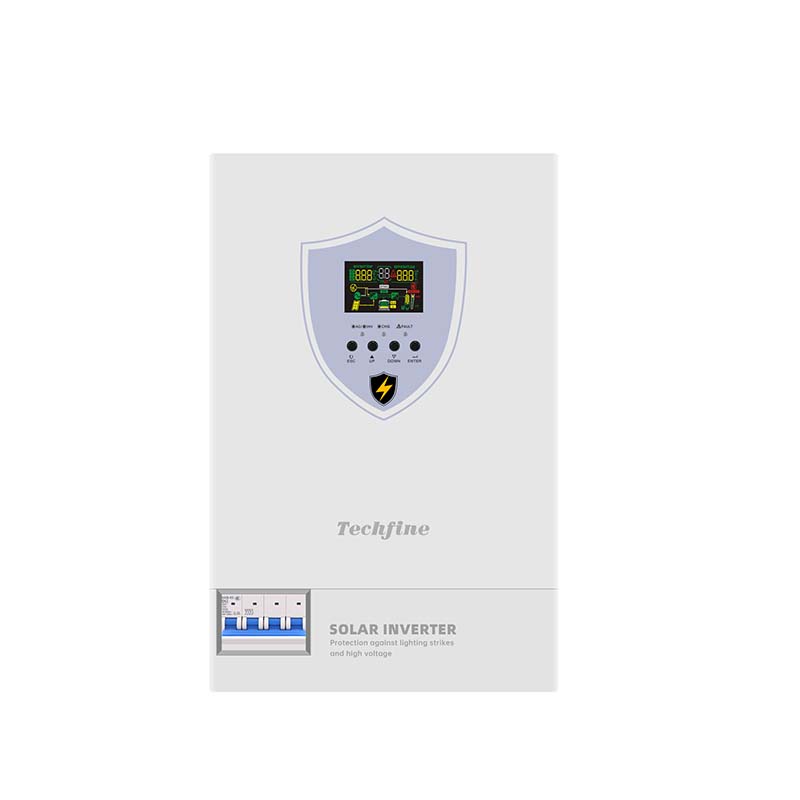

Techfine Solar 24v Inverter 3600 Watt Solar Inverter With Circuit Breaker

Name: Techfine Solar 24v Inverter 3600 Watt Solar Inverter With Circuit Breaker
Brand: Techfine
Rating: 5.0 (44 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
1. With lightning protection and high voltage protection functions
2. Input and output safety switch design
3. Increase in photovoltaic input current and power
4. Increase in photovoltaic inverter power
5. Higher photovoltaic utilization when photovoltaic andmains complement each other
6. With EMI filtering,less interference

Availability:



Inquiry

Model:
IV3624SMH
Brand:
Techfine

Techfine Solar 24V Inverter 3600 Watt with Circuit Breaker

Experience reliable performance with the Techfine 3600 Watt Solar Inverter. Designed for home solar systems, this solar 24V inverter features lightning protection and a high voltage safety switch, ensuring optimal safety and functionality. The inverter increases both photovoltaic input current and power, delivering higher efficiency when solar and mains power complement each other. With EMI filtering, it reduces interference for stable output. Perfect for homeowners seeking efficient and safe solar power inverters at 220V, this unit is built to meet diverse energy needs.

Techfine-Lightning And High-voltage Protection Hybrid Solar Inverter-IV Series Product Detail (1)

3600 watt solar inverter solar 24v inverter home solar inverters 24v inverter solar solar power inverter 220v

Model			IV3624SMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	3600W
		Photovoltaic Inverter	4500W
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Peak Power		7200VA
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Grid feeding voltage range		195-253VA
	Grid feeding frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		15.7A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		24Vdc
	Constant voltage charging voltage (configurable)		28.2Vdc
	Float charging voltage (configurable)		27Vdc
charger	PV charging method		MPPT
	Maximum input power of PV		5000W
	MPPT input voltage range		60-500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		18A
	Maximum PV charging current		120A
	Maximum mains charging current		100A
	Maximum charging current		120A
display	LCD Interface		Can display operation mode/load/input/output, etc.
interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	noise		≤50db
Physical parameters	Depth × width × height (mm)		495312135
	Weight (for reference) KG		7.5
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Model			IV3624SMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	3600W
		Photovoltaic Inverter	4500W
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Peak Power		7200VA
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Grid feeding voltage range		195-253VA
	Grid feeding frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		15.7A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		24Vdc
	Constant voltage charging voltage (configurable)		28.2Vdc
	Float charging voltage (configurable)		27Vdc
charger	PV charging method		MPPT
	Maximum input power of PV		5000W
	MPPT input voltage range		60-500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		18A
	Maximum PV charging current		120A
	Maximum mains charging current		100A
	Maximum charging current		120A
display	LCD Interface		Can display operation mode/load/input/output, etc.
interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	noise		≤50db
Physical parameters	Depth × width × height (mm)		495312135
	Weight (for reference) KG		7.5
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
