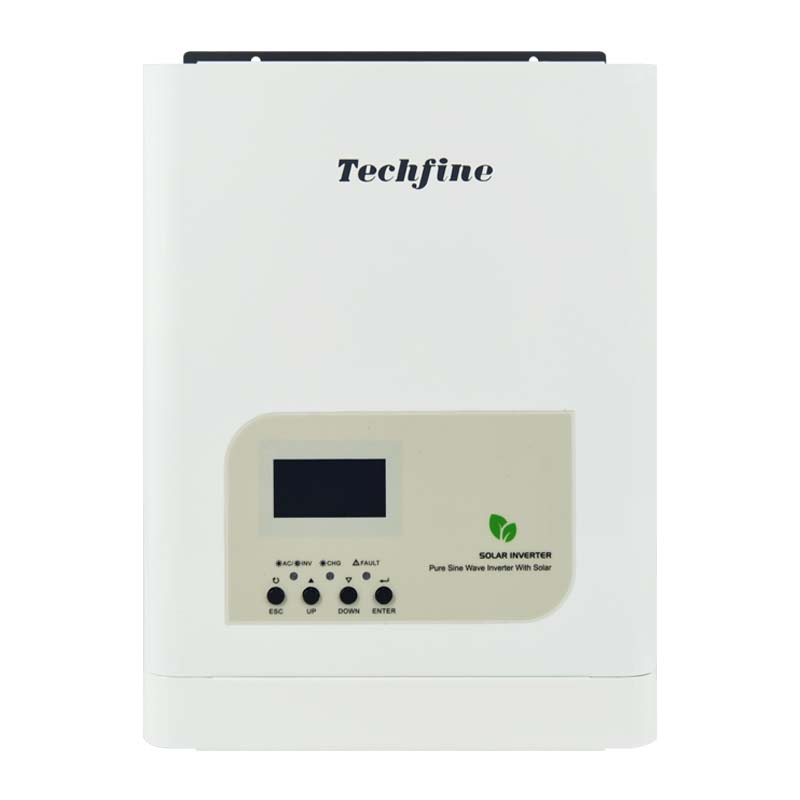

VS1012
Techfine
Pure sine ware output
MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
Inbuit with transformer which is strong load ability
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Pure sine ware output
MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
Inbuit with transformer which is strong load ability
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Model | VS1012 |
AC input voltage | 220VAC(standard) |
Input voltage range | 154-275VAC±5V(Nor Model |
Input frequency | 50/60Hz±5% |
Out put power | 1000VA |
800W | |
AC model output voltage | 220V±10% |
Battery model output frequency | The output frequency under the mains is the same a the input frequency |
Battery model output voltage | 220V±3% |
Battery model output frequency | 50/60Hz±1% |
Battery model output wave | Pure Sine Wave |
Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery |
Battery voltage | 12VDC |
Battery charging voltage | 13.75VDC |
Maximum PV array power | 12V: 400W |
Solar input voltage range | 12V:PWM15V-50VDC 24V:PWM30V-105VDC |
Maximum Pv Display Open Circuit Voltage | 12V: PWM 50VDC 24V: PWM105VDC |
Maximum solar charging current | 60A |
Maximum Ac charge Current | 19A |
Battery charging voltage range | 154-275VAC±5V |
Transfer time | ≤10ms |
Load peak ratio | (MAX)3:1 |
Protective function | Under the mains : input overcurrent fuseUnder inverter: overload protection,short circuit protection, low voltage protection.with battery anti-reverse connection,board) |
Status Display | You can view parameters such as AC voltage, AC frequency, PVvoltage, PV current, output voltage. output frequency, battery voltage, load current and other parameters by turning the page keys |
Voice prompt | Low battery protection buzzer long beep Low battery buzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every secondandthe output will be turned off after 30S. When the overload is greater than150%the output will be turned off after 300mS. |
Operating temperature | 0℃-40℃ |
Storage temperature | -15℃~45℃ |
Relative temperature | -10°C-90°Cno condensation |
Noise | <48dB |
