Techfine MPPT Solar Charge Controller 60a 12/24v/36v/48v for Solar System

Name: Techfine MPPT Solar Charge Controller 60a 12/24v/36v/48v for Solar System
Brand: Techfine
Rating: 5.0 (63 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature：
Can support WIFI/ GPRS
12/24/3648Vadaptive
Three-stage smart charging
Adjustable parameters by pressing buttons
It can connect Lead acid batter /lithium battery/waterbattery

Availability:



Inquiry

Model:
MB60415
Brand:
Techfine

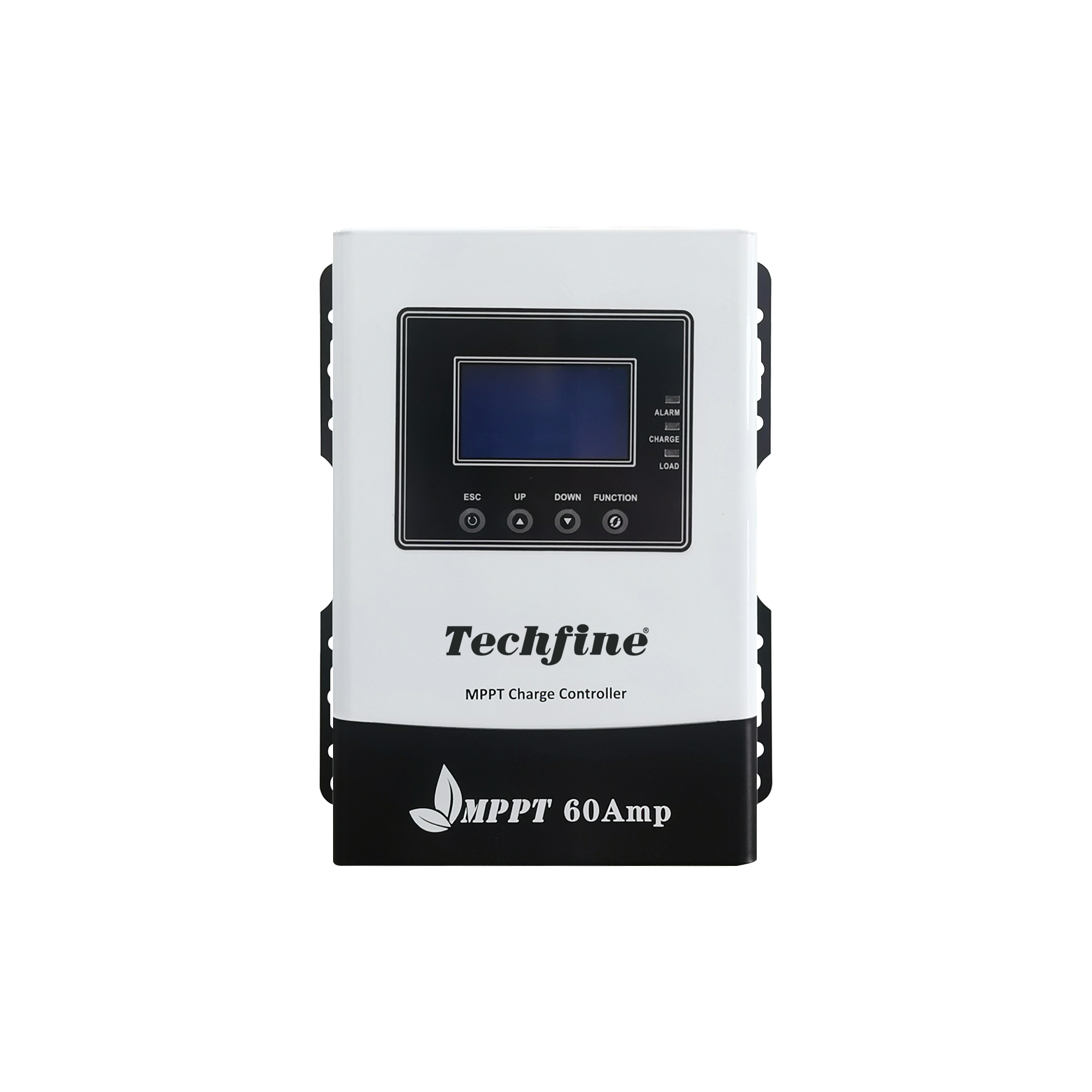

Techfine MPPT Solar Charge Controller 60A | 12V/24V/36V/48V MB Series

Get maximum solar efficiency with the Techfine MPPT Solar Charge Controller 60A, designed for flexibility and performance in various solar setups. This controller offers a 12V/24V/36V/48V adaptive range, making it an ideal solution for those looking to maximize solar energy management across different system voltages. With support for both lead-acid and lithium battery types, this versatile MPPT charge controller ensures optimal charging with three-stage smart charging technology, which protects and extends battery life.

Featuring adjustable parameters and intuitive controls, this 60A MPPT solar charge controller also includes optional WiFi and GPRS support for enhanced monitoring capabilities. Its powerful MPPT solar charge technology efficiently manages the power supply, making it perfect for both residential and commercial solar systems. Whether you need a 12V/24V or 36V MPPT solar charge controller, Techfine’s MB Series has you covered for reliable solar performance.

mppt charge controller mppt solar charge controller 60a mppt solar charge controller 12v/24v solar charge controller 36v mppt solar charge controller mppt solar charge controller 60a 12/24v/36v/48v

Factory model		60415
System voltage		12V/24V/36V/48V(Adaptive)
Rated current		60A
Charging mode		MPPT maximum power point tracking
Applicable battery type		Sealed maintention-free lead-acid battery (default), colloidal lead-acid battery, open lead-acid battery (can also customize parameters for other types of battery charging)
Charging mode		Three stages: constant current, constant pressure, floating charge
Pv Input Maximum Open Circuit Voltage (VOC)		DC150V(minimum temperature) DC138V (25℃ standard temperature)
Start-up time		≤10s
Dynamic response recovery time		≤500us
Static power consumption
Tracking efficiency		≥99.5%
Maximum conversion efficiency		≥98%
The controller system identifies the operating voltage range		8～64V
Maximum power point operating voltage range	12V system	20～150VDC
	24V system	36～150VDC
	36V system	48～150VDC
	48V system	64～150VDC
Rated charging power	12V	800W
	24V	1600W
	36V	2400W
	48V	3200W
	96V	/
Load voltage		Cobattery voltage
Rated load current		40A
Load control mode		Normally on normally off mode/time control mode/light control mode
Load undervoltage protection		The default value is 10.5V x N (N is the number of batteries)
Heat dissipation mode		Air cooling
Display mode		Hd LCD backlight display
Protection function		Input and output over and under voltage protection, input and output anti-reverse protection, machine over temperature protection, load over current protection
Temperature compensation coefficient		-3mV/℃/2V
Communication mode		RS485
Operating ambient temperature		-20℃～+50℃
Storage temperature		-40℃～+70℃
Noise		≤50dB
Humidness		0～90%RH
Altitude		0～3000M

Factory model		60415
System voltage		12V/24V/36V/48V(Adaptive)
Rated current		60A
Charging mode		MPPT maximum power point tracking
Applicable battery type		Sealed maintention-free lead-acid battery (default), colloidal lead-acid battery, open lead-acid battery (can also customize parameters for other types of battery charging)
Charging mode		Three stages: constant current, constant pressure, floating charge
Pv Input Maximum Open Circuit Voltage (VOC)		DC150V(minimum temperature) DC138V (25℃ standard temperature)
Start-up time		≤10s
Dynamic response recovery time		≤500us
Static power consumption
Tracking efficiency		≥99.5%
Maximum conversion efficiency		≥98%
The controller system identifies the operating voltage range		8～64V
Maximum power point operating voltage range	12V system	20～150VDC
	24V system	36～150VDC
	36V system	48～150VDC
	48V system	64～150VDC
Rated charging power	12V	800W
	24V	1600W
	36V	2400W
	48V	3200W
	96V	/
Load voltage		Cobattery voltage
Rated load current		40A
Load control mode		Normally on normally off mode/time control mode/light control mode
Load undervoltage protection		The default value is 10.5V x N (N is the number of batteries)
Heat dissipation mode		Air cooling
Display mode		Hd LCD backlight display
Protection function		Input and output over and under voltage protection, input and output anti-reverse protection, machine over temperature protection, load over current protection
Temperature compensation coefficient		-3mV/℃/2V
Communication mode		RS485
Operating ambient temperature		-20℃～+50℃
Storage temperature		-40℃～+70℃
Noise		≤50dB
Humidness		0～90%RH
Altitude		0～3000M
