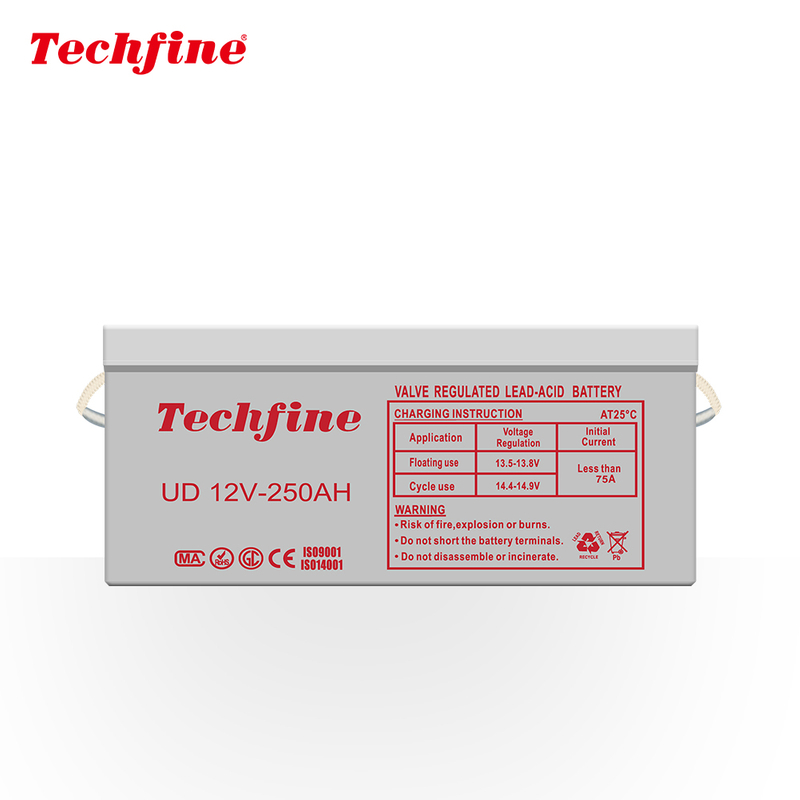

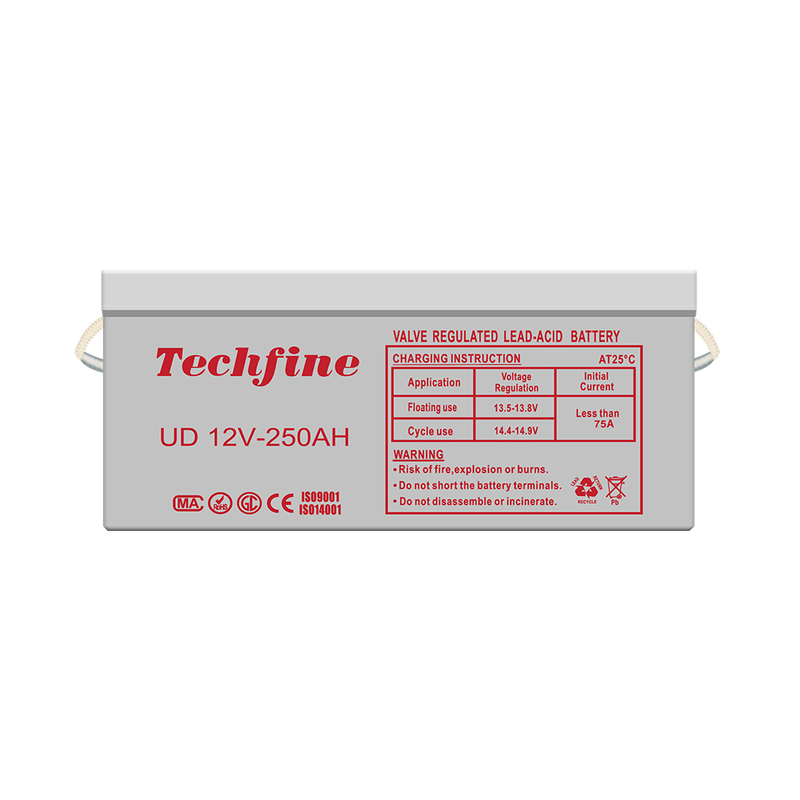

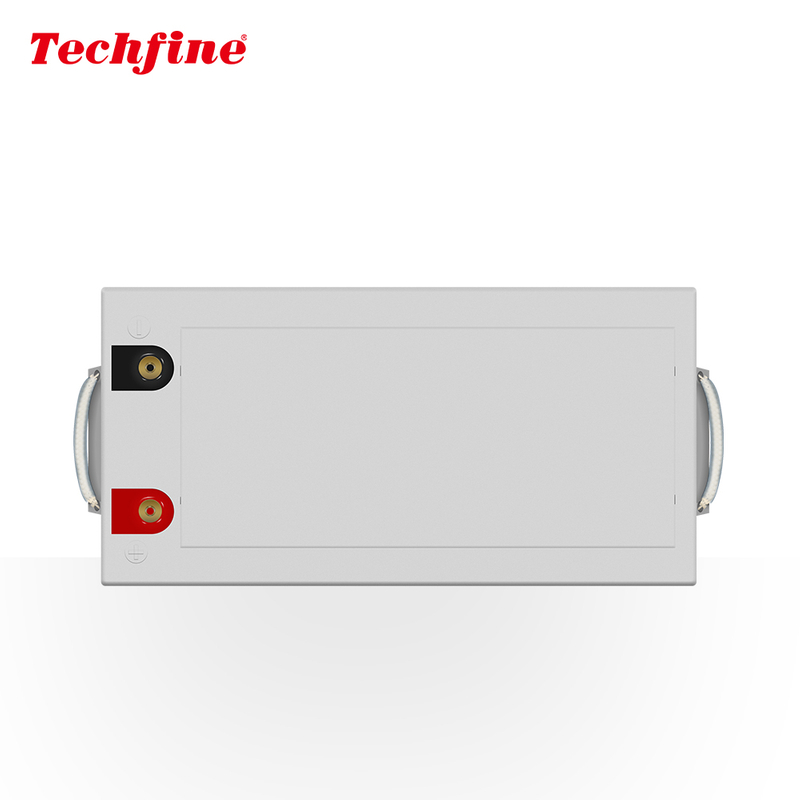

Techfine Gel Battery 12v 250ah Lead Acid AGM Batteries For Solar Home System

Name: Techfine Gel Battery 12v 250ah Lead Acid AGM Batteries For Solar Home System
Brand: Techfine
Rating: 5.0 (51 reviews)

Minimum order quantity (MOQ) ≥5 Pieces;
Samples can be sent for testing;

Uninterruptable Power Supply (UPS)

Electric Power System (EPS)

Emergency backup power supply

Emergency light

Railway signal

Aircraft signal

Alarm and security system

Electronic apparatus and equipment

Communication power supply

DC power supply

Auto controlsystem

Nominal Voltage	12V
Nominal Capacity(10HR)	250AH
Dimension	Length	522 ±3mm (20.55 inches)
	Width	268 ±2mm (10.55 inches)
	Container Height	220 ±2mm (8.66inches)
	Total Height (withTerminal)	225 ±2mm (8.86 inches)
Approx Weight	Approx 63.8 kg (140.65lbs)
Terminal	T11
Container Material	ABS
Rated Capacity	260.0 AH/13.0A	(20hr ,1.80V/cell,25℃/77℉)
	250.0 AH/25.0A	(10hr,1.80V/cell,25℃/77℉)
	215.4 AH/43.0A	(5hr,1.75V/cell,25℃/77℉)
	195.2 AH/65.05A	(3hr,1.75V/cell,25℃/77℉)
	152.5 AH/152.5A	(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current	2500A (5s)
Internal Resistance	Approx 2.7mΩ
Operating Temp.Range	Discharge : -15~50℃ (5~122℉)
	Charge : 0~40℃ (32~104℉)
	Aircraft signal Storage : -15~40℃ (5~104℉)
Nominal Operating Temp. Range	25 ±3℃ (77 ±5℉ )
Cycle Use	Initial Charging Current less than 60.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use	No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature	40℃ (104 ℉)103%
	25℃ ( 77 ℉ )100%
	0℃ ( 32℉ ) 86%
Self Discharge	Techfine batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher
	temperatures the time interval will be shorter.
