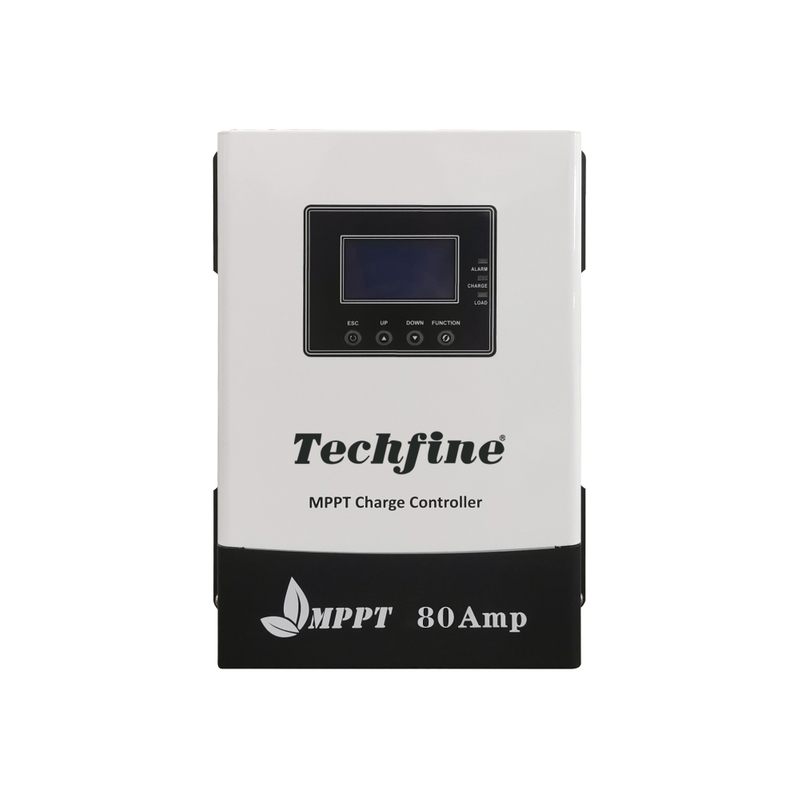

Techfine 80a MPPT Solar Charge Controller 12v/24v/36v/48v Adaptive

Name: Techfine 80a MPPT Solar Charge Controller 12v/24v/36v/48v Adaptive
Brand: Techfine
Rating: 5.0 (20 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature：

Can support WIFI/ GPRS
12/24/3648Vadaptive
Three-stage smart charging
Adjustable parameters by pressing buttons
It can connect Lead acid batter /lithium battery/waterbattery
Inquiry

Availability:



Inquiry

Model:
MB80415
Brand:
Techfine

Introducing the Techfine 80A MPPT Solar Charge Controller, a versatile 12V/24V/36V/48V adaptive controller crafted for high-efficiency solar systems. With its advanced MPPT technology, this 80A solar charge controller maximizes energy collection and offers exceptional adaptability across multiple battery types, including lead-acid, lithium, and water batteries. Featuring a three-stage smart charging process, adjustable parameters, and RoHS compliance, it guarantees optimal charging for both small and large systems.

Key highlights include WiFi/GPRS support for remote monitoring, easy parameter adjustments, and adaptive voltage options that make this 36V and 48V MPPT solar charge controller ideal for reliable, long-term solar performance.

80a mppt solar charge controller rohs solar charge controller 12v/24v 36V Solar Charge Controller 48v mppt solar charge controller

Factory model		80415
System voltage		12V/24V/36V/48V(Adaptive)
Rated current		80A
Charging mode		MPPT maximum power point tracking
Applicable battery type		Sealed maintention-free lead-acid battery (default), colloidal lead-acid battery, open lead-acid battery (can also customize parameters for other types of battery charging)
Charging mode		Three stages: constant current, constant pressure, floating charge
Pv Input Maximum Open Circuit Voltage (VOC)		DC150V(minimum temperature) DC138V (25℃ standard temperature)
Start-up time		≤10s
Dynamic response recovery time		≤500us
Static power consumption		≤8W
Tracking efficiency		≥99.5%
Maximum conversion efficiency		≥98%
The controller system identifies the operating voltage range		8～64V
Maximum power point operating voltage range	12V system	20～150VDC
	24V system	36～150VDC
	36V system	48～150VDC
	48V system	64～150VDC
Rated charging power	12V	1040W
	24V	2080W
	36V	3120W
	48V	4160W
	96V	/
Load voltage		Cobattery voltage
Rated load current		40A
Load control mode		Normally on normally off mode/time control mode/light control mode
Load undervoltage protection		The default value is 10.5V x N (N is the number of batteries)
Heat dissipation mode		Air cooling
Display mode		Hd LCD backlight display
Protection function		Input and output over and under voltage protection, input and output anti-reverse protection, machine over temperature protection, load over current protection
Temperature compensation coefficient		-3mV/℃/2V
Communication mode		RS485
Operating ambient temperature		-20℃～+50℃
Storage temperature		-40℃～+70℃
Noise		≤50dB
Humidness		0～90%RH
Altitude		0～3000M
Body size (mm)		275348109
Net weight (KG) is for reference only		4.6KG
Recommended connection		4AWG/25mm²

Factory model		80415
System voltage		12V/24V/36V/48V(Adaptive)
Rated current		80A
Charging mode		MPPT maximum power point tracking
Applicable battery type		Sealed maintention-free lead-acid battery (default), colloidal lead-acid battery, open lead-acid battery (can also customize parameters for other types of battery charging)
Charging mode		Three stages: constant current, constant pressure, floating charge
Pv Input Maximum Open Circuit Voltage (VOC)		DC150V(minimum temperature) DC138V (25℃ standard temperature)
Start-up time		≤10s
Dynamic response recovery time		≤500us
Static power consumption		≤8W
Tracking efficiency		≥99.5%
Maximum conversion efficiency		≥98%
The controller system identifies the operating voltage range		8～64V
Maximum power point operating voltage range	12V system	20～150VDC
	24V system	36～150VDC
	36V system	48～150VDC
	48V system	64～150VDC
Rated charging power	12V	1040W
	24V	2080W
	36V	3120W
	48V	4160W
	96V	/
Load voltage		Cobattery voltage
Rated load current		40A
Load control mode		Normally on normally off mode/time control mode/light control mode
Load undervoltage protection		The default value is 10.5V x N (N is the number of batteries)
Heat dissipation mode		Air cooling
Display mode		Hd LCD backlight display
Protection function		Input and output over and under voltage protection, input and output anti-reverse protection, machine over temperature protection, load over current protection
Temperature compensation coefficient		-3mV/℃/2V
Communication mode		RS485
Operating ambient temperature		-20℃～+50℃
Storage temperature		-40℃～+70℃
Noise		≤50dB
Humidness		0～90%RH
Altitude		0～3000M
Body size (mm)		275348109
Net weight (KG) is for reference only		4.6KG
Recommended connection		4AWG/25mm²
