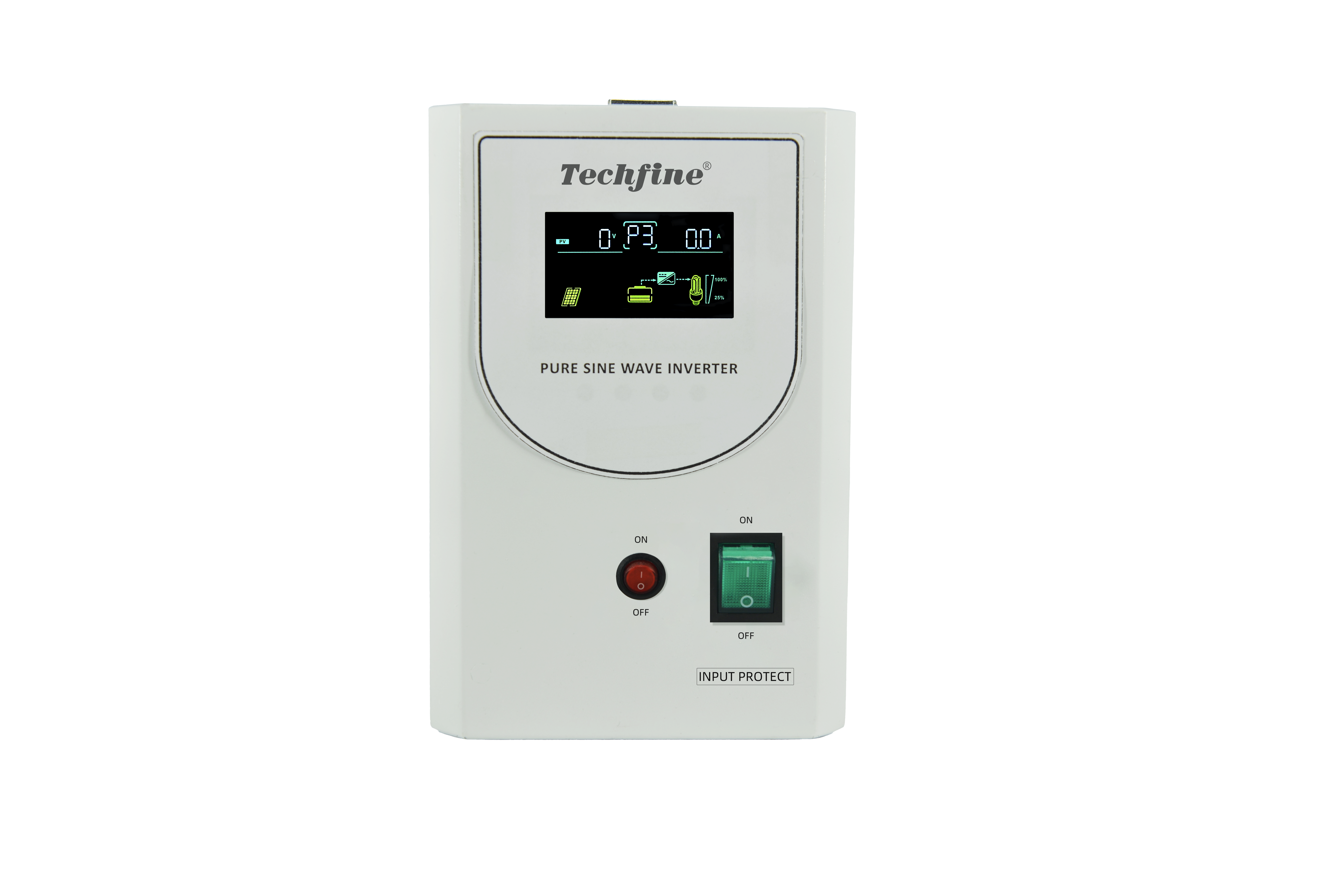

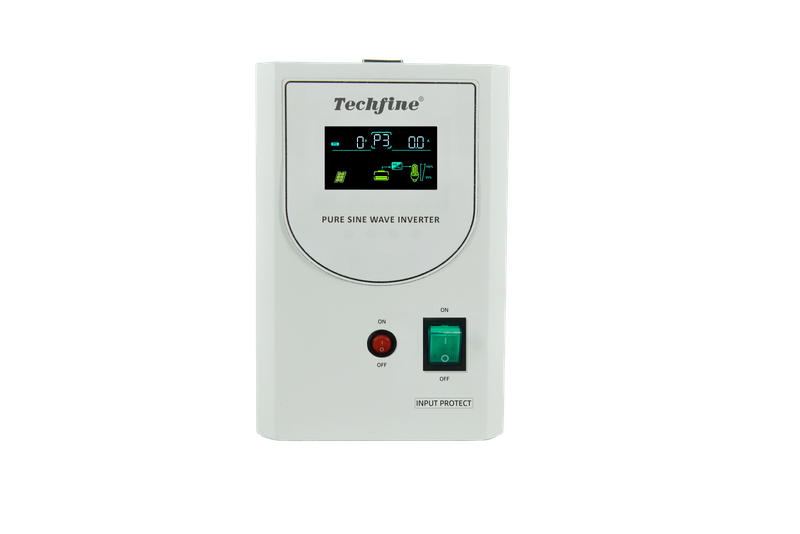

Techfine 500VA 300W pure sine wave with Toroidal transformer UPS European style for automatic gates UPS manufacturer

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Features:
Pure sine ware output
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode”  to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
Auto Restart Voltage
Availability:
Techfine 500VA 300W pure sine wave with Toroidal transformer UPS European style for automatic gates UPS manufacturer
Techfine 500VA 300W pure sine wave with Toroidal transformer UPS European style for automatic gates UPS manufacturer
Techfine 500VA 300W pure sine wave with Toroidal transformer UPS European style for automatic gates UPS manufacturer
Techfine 500VA 300W pure sine wave with Toroidal transformer UPS European style for automatic gates UPS manufacturer
  • HB-0512

  • Techfine

Power Inverter HB Series Detail

ModelHB0512
Rated Capacity500VA
Rated Power350W
Nominal Voltage220VAC(Standard)/110VAC(custom)
Output Voltage(AC)The   output voltage under AC is the same as the input voltage
Output Frequency   (AC)The   output voltage frequency under AC is the same as the input frequency
InputVoltage   range220V:154-264VAC±3V                                                         110V:77-132VAC±3V
Frequency50/60Hz±5%
OutputVoltage220VAC±10%(110VAC±10%)
Frequency50HZor60HZ±1%
Wave FormPure   sine wave
Load   Peak Ratio(MAX)3:1
Static   Power(W)6W
Protectionoverload/high   temperature/output high voltage /output low voltage/
    battery low voltage shortcircuit/over-charge/over-discharge/reversed   polarity(optional)
LCD   indicator statusAC   input voltage, AC input frequency, PV voltage, PV current , Output Voltage,   Output Frequency, Battery voltage, Load current etc.
Transfer   Time≤10ms
Battery   TypeExternal   lead-acid battery,water battery,Lithium battery
Battery   Voltage12VDC
Charge   Voltage13.75DC
Charge   Current8A
Battery   Charging voltage range150-280VAC
Audible alarmLow battery   protection-continuous beeping
Low battery protection-1 second beeping
Overload-continuous beeping
Overload less than 130%-1 second beeping and shutdown the output after   30 seconds; Overload more than 150%,shutdown the output after 300ms
Malfunction-continuous beeping
EnvironmentalOperating   Temperature0~40℃
Relative Temperature—10℃~90 no   condensation
Storage Temperature-15-45℃
PackingMachine   Size(mm)300*144*213
Carton Size(mm)392*227*318
CartonN.W.(ka)7.5
CartonG.W.(kg)8.5
