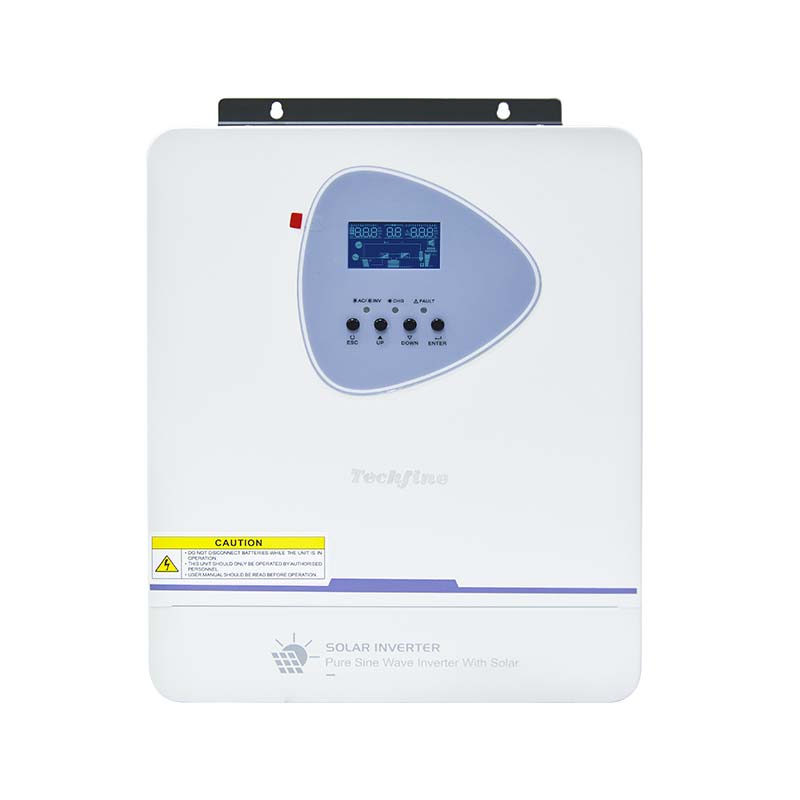

Techfine 3kw Off Grid Solar Inverter Off Grid 3000w Best 24v Solar Inverter

Name: Techfine 3kw Off Grid Solar Inverter Off Grid 3000w Best 24v Solar Inverter
Brand: Techfine
Rating: 5.0 (95 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
•Cost-effective solution design
•Rounded corner design, exquisite appearance
•Multiple parameters can be adjusted according to user needs to adapt to different occasions
•Power below 3KW does not support battery-free mode
•Support lithium battery communication, external WIFI, generator self-start dry contact function
•Real-time display of actual load power greatly improves user perception
•Pure sine wave output, can adapt to different loads
•Output short-circuit protection function
•Parallel design is not supported.

Availability:



Inquiry

Model:
EA3024EMH
Brand:
Techfine

Techfine 3KW Off Grid Solar Inverter Off Grid 3000W Best 24V Solar Inverter

The Techfine 3KW Off Grid Solar Inverter is a reliable 3000W solar power inverter with a sleek rounded corner design. Offering pure sine wave output and adjustable parameters, this solar inverter off grid 3000W adapts to various needs. It supports lithium battery communication, external Wi-Fi, and generator self-start functions. With real-time load display and output short-circuit protection, it ensures safe and efficient performance. Ideal for those seeking the best 24V solar inverter for off-grid solutions.

Techfine Cost-effective Solar Hybrid Inverter EA Series-Product Details (6)

3kw off grid solar inverter solar inverter off grid 3000w reliable 3000w solar power inverter best 24v solar inverter inverter solar

Model			EA3024EMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（正normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	3000W
		Photovoltaic Inverter	3000W
	Peak Power		6000VA
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		No grid connection
	Grid feeding voltage range
	Grid feeding frequency range
	Nominal output current
	Power factor range
	Maximum conversion efficiency (DC/AC)
Battery	Rated voltage		24Vdc
	Constant voltage charging voltage (configurable)		28.2Vdc
	Float charging voltage (configurable)		27Vdc
Charger	PV charging method		MPPT
	Maximum input power of PV		3000W
	MPPT input voltage range		40~500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		13A
	Maximum PV charging current		100A
	Maximum mains charging current		60A
	Maximum charging current		100A
Display	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	Noise		≤50db
Physical parameters	Depth × width × height (mm)		403304114
	Weight (for reference) KG		6
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Model			EA3024EMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（正normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	3000W
		Photovoltaic Inverter	3000W
	Peak Power		6000VA
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		No grid connection
	Grid feeding voltage range
	Grid feeding frequency range
	Nominal output current
	Power factor range
	Maximum conversion efficiency (DC/AC)
Battery	Rated voltage		24Vdc
	Constant voltage charging voltage (configurable)		28.2Vdc
	Float charging voltage (configurable)		27Vdc
Charger	PV charging method		MPPT
	Maximum input power of PV		3000W
	MPPT input voltage range		40~500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		13A
	Maximum PV charging current		100A
	Maximum mains charging current		60A
	Maximum charging current		100A
Display	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		No parallel function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	Noise		≤50db
Physical parameters	Depth × width × height (mm)		403304114
	Weight (for reference) KG		6
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
