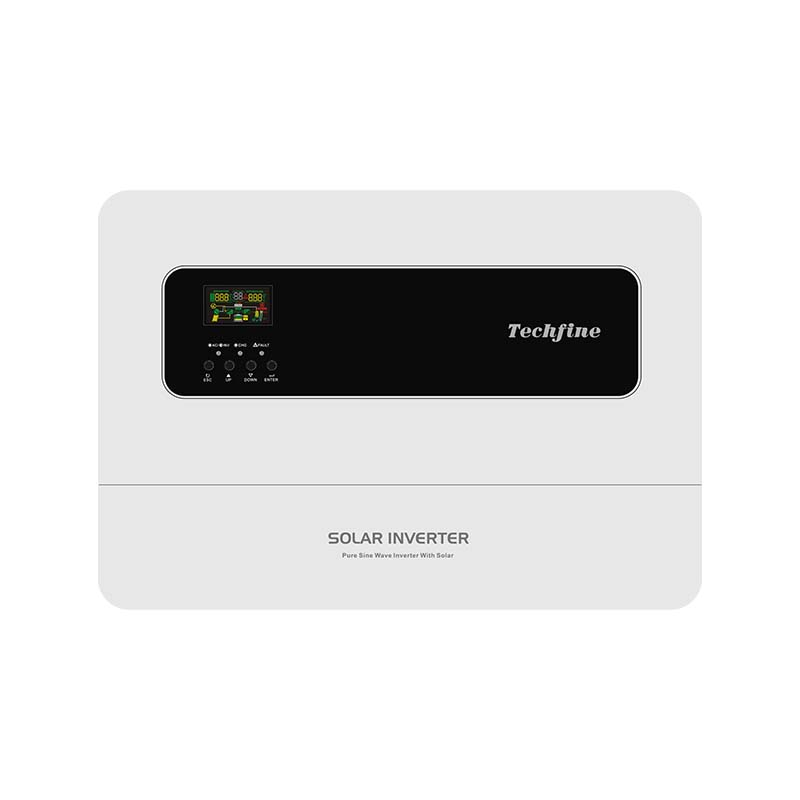

Techfine 10kw Solar Inverter Mppt Solar Inverter 48v High Pv Input

Name: Techfine 10kw Solar Inverter Mppt Solar Inverter 48v High Pv Input
Brand: Techfine
Rating: 5.0 (68 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
• Low no-load loss, less than half of the high-frequency machine with the same power
• Pure sine wave output, can adapt to different loads
• Output short-circuit protection function
• Multiple parameters can be adjusted according to user needs
• Built-in MPPT can reach 245V, 100A
• Standard BMS communication function
• Standard RS232 communication function

Availability:



Inquiry

Model:
JV12548AM8V
Brand:
Techfine

Techfine 10kW Solar Inverter – High PV Input for Efficient Solar Power

The Techfine 10kW solar inverter is a reliable choice for efficient energy management in residential and commercial solar systems. With low no-load loss, it consumes significantly less power compared to high-frequency models.

This solar electric inverter offers pure sine wave output, adapting to various loads for stable performance. It features a built-in MPPT solar inverter that supports up to 245V and 100A, maximizing energy capture.

Designed for flexibility, the inverter allows users to adjust multiple parameters as needed. It also includes short-circuit protection, along with BMS and RS232 communication functions for seamless monitoring and control.

As one of the top solar power inverter suppliers, Techfine ensures dependable and durable solutions for your energy needs. Choose this solar power inverter generator for optimized solar power performance.

Techfine-High PV Input Off Grid Solar Inverter-JV Series Details (1)

Model	JV12548AM8V
Rated output power	10000W
Power Input	220VAC (standard) / 110VAC (customized)
Input voltage range	220V model: 154-264VAC±3V (normal mode) 185-264VAC±3V (UPS mode) \110V model: 77-132VAC±3V (normal mode) 92-132VAC±3V (UPS mode)
Input frequency	50/60Hz±5%
OUTPUT
Output voltage under AC power	The output voltage under AC power is the same as the input voltage
Output frequency under AC power	The output frequency under AC power is the same as the input frequency
Output voltage under inverter mode	220VAC±10% (110VAC±10%)
Output frequency under inverter mode	50HZ or 60HZ±1%
Output waveform under inverter mode	pure Sine Wave
BATTERY & CHARGE
Battery Type	External lead-acid battery or water battery or lithium battery
Battery voltage	48VDC
Battery charging voltage	54.8VDC
PV INPUT
Maximum PV array power	5400W
PV input voltage range(MPPT)	60-245VDC
maximum photovoltaic open-circuit voltage	245VDC
Optimal Vmp operating range	60-170VDC
maximum solar charging current	100A
AC INPUT
maximum AC charging current	100A(default80A)
EFF
Conversion time	≤10ms（UPS mode）/≤20ms（normal mode)
Load peak ratio	（MAX)3:1
Standby power (W)	encapsulated toroidal transformer
Standby power (W)	32W
PROTECT
Protection function	Under grid power: input overcurrent circuit breaker protection
Protection function	Under inverter operation: overload protection, short circuit protection, low voltage protection, battery reverse polarity protection (fuse)
Status display	color segment display with LED indicator
	view parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, and load current using the page turning key。
	LED displays mains power, charging status, inverter status, and fault status
Audible alert	The buzzer produces different alarm sounds based on the fault codes, distinguished by long and short tones
ENVIRONMENTAL PARAMETERS
Operating temperature	-10℃~50℃
Storage temperature	-15℃~45℃
Relative temperature	-10℃~90℃ non-condensing
Noise	＜45dB
PHYSICAL PARAMETERS
Machine dimensions（LWH)mm	626451172MM
Outer packaging dimensions（LWH)mm	730520233MM(foam + cardboard box) 737527248MM(foam + cardboard box + color box）
