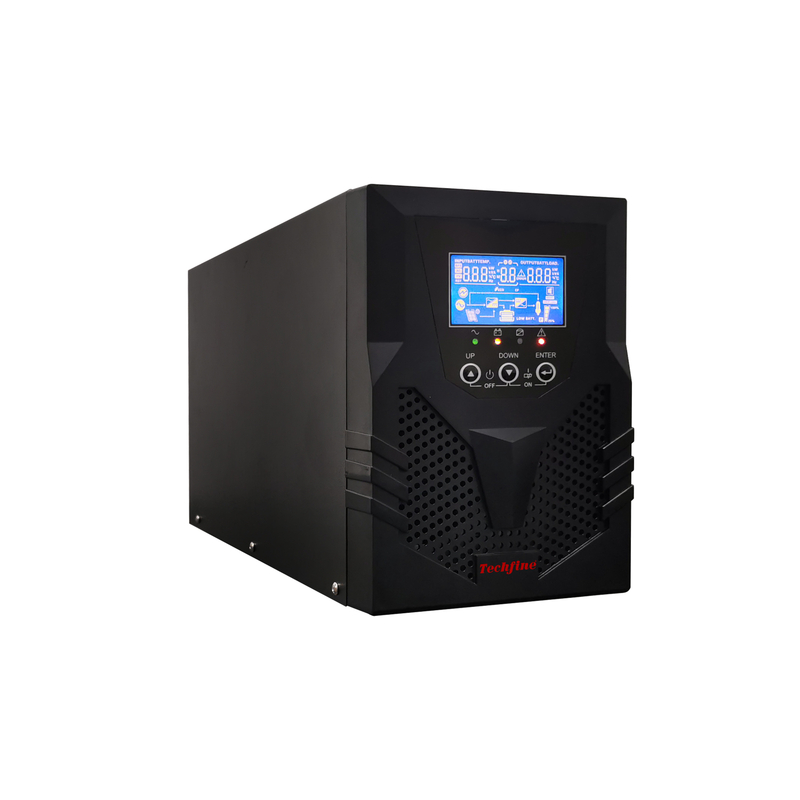

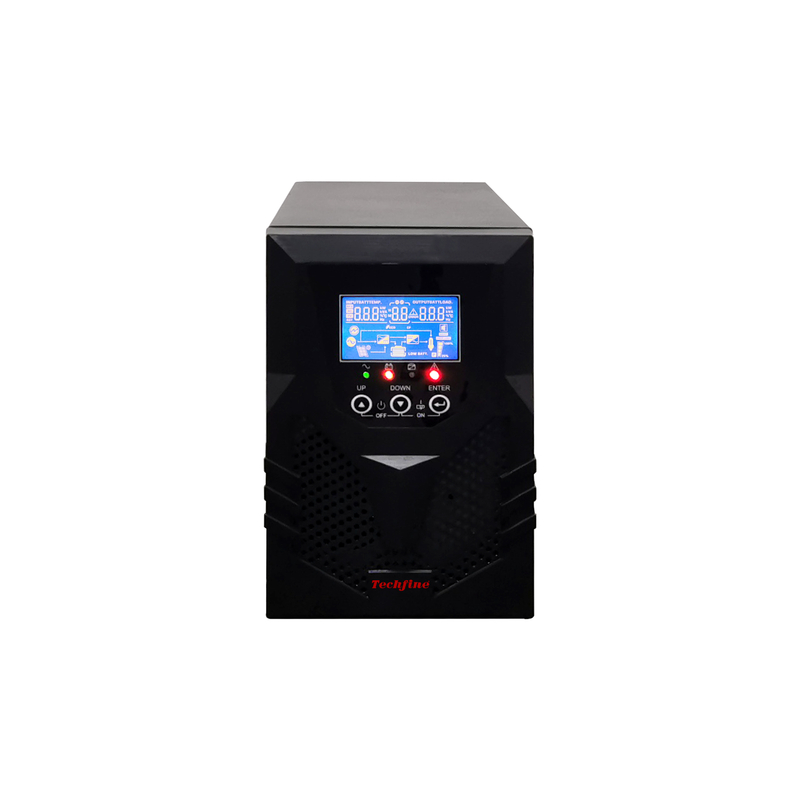

Pure Sine Wave 220V 110V 1KVA 2KVA 3KVA 10KVA 15KVA UPS Power Supply Online 2KW 5KW 10KW 20KVA UPS

Share to:

Pure Sine Wave 220V 110V 1KVA 2KVA 3KVA 10KVA 15KVA UPS Power Supply Online 2KW 5KW 10KW 20KVA UPS

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
Max 12 A big charge current
1.0 output power factor
Up to 95.5% high efficiency

Availability:



Inquiry

Model:
CQ2K
Brand:
Techfine

Feature：

Pure sine wave output, online zero conversion time
Wide input frequency range adjustable from 40-70HZ
Output short circuit protection and overload protection
Full-time lightning protection, noise and surge protection
The LCD screen is to display the status parameters at a glance

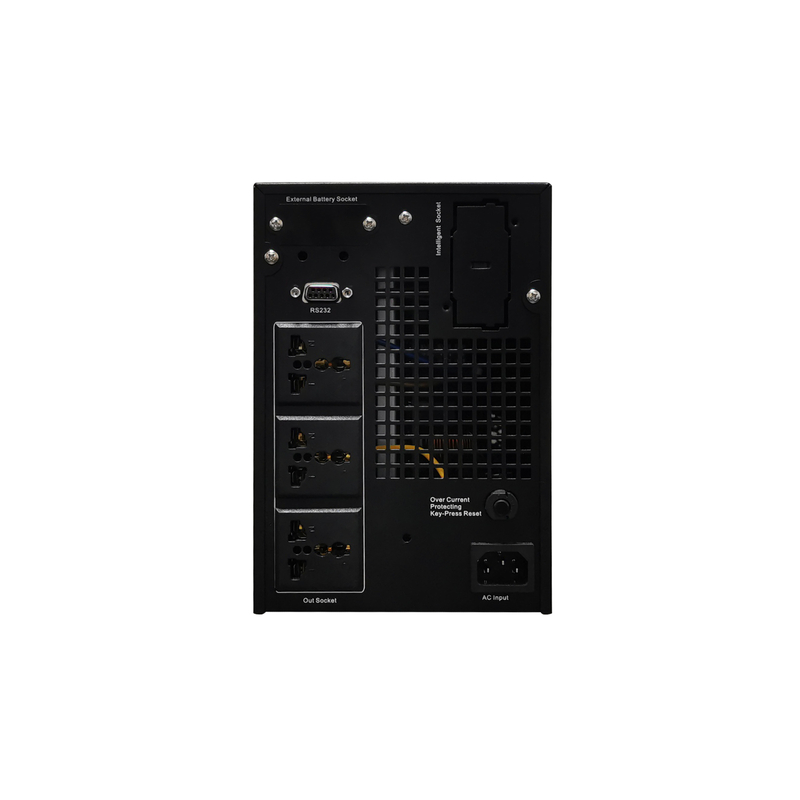

The RS232 communication interface is applied
Double-sided circuit board design with higher safety and reliability
Various common technical parameters can be set on the panel

Online UPS CQ Series Detail

220v Online Ups uninterruptible power supplies (ups) 3kva Ups 5kva Ups ups power supply for house ups supply system

Models		CQ2K (S)
Phase		Single-phase
Capacity		2K VA / 2KW
Input
Voltage range		110 - 300VAC
Frequency range		50HZ/60HZ
Power factor		1
Output
Output voltage		220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional
Frequency range (battery mode)		50 Hz （60HZ selectable）± 0.25 Hz
Transfer		0ms
time
Wave form		Pure sine wave
Battery
Standard	Battery model	12V / 7AH（Standar) 12V /9AH（Optional)
	Quantity/DC Voltage	4PCS/48VDC
	Max. charging current	1.0A (Maximum)
Long-run	Battery model	Depends on the users
	DC Voltage	72VDC
	Max. charging current	1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable
LCD or LED display		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Control management		Smart RS-232、SNMP optional

Models		CQ2K (S)
Phase		Single-phase
Capacity		2K VA / 2KW
Input
Voltage range		110 - 300VAC
Frequency range		50HZ/60HZ
Power factor		1
Output
Output voltage		220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional
Frequency range (battery mode)		50 Hz （60HZ selectable）± 0.25 Hz
Transfer		0ms
time
Wave form		Pure sine wave
Battery
Standard	Battery model	12V / 7AH（Standar) 12V /9AH（Optional)
	Quantity/DC Voltage	4PCS/48VDC
	Max. charging current	1.0A (Maximum)
Long-run	Battery model	Depends on the users
	DC Voltage	72VDC
	Max. charging current	1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable
LCD or LED display		Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Control management		Smart RS-232、SNMP optional
