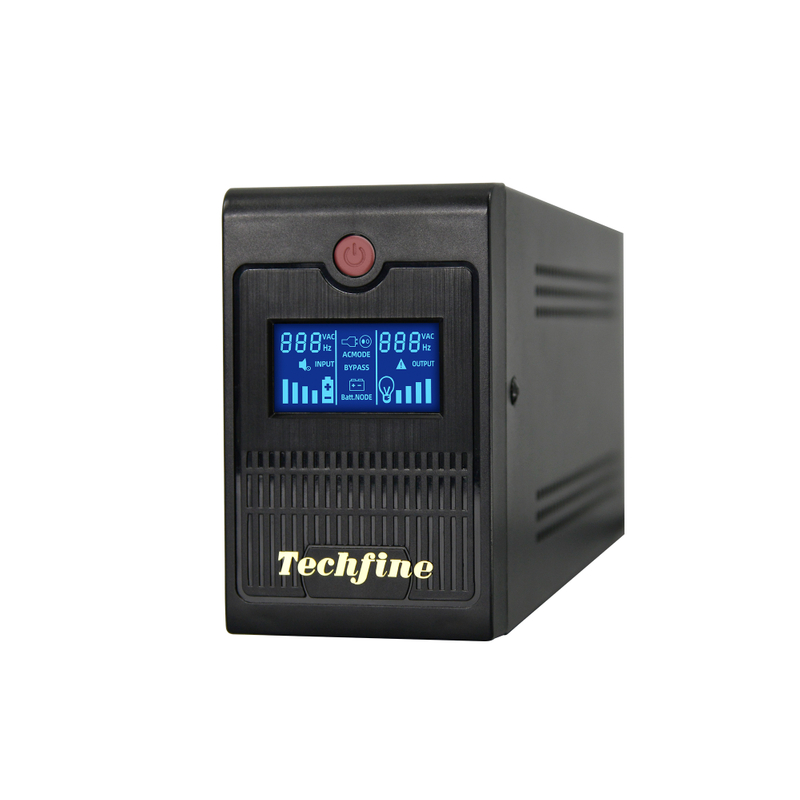

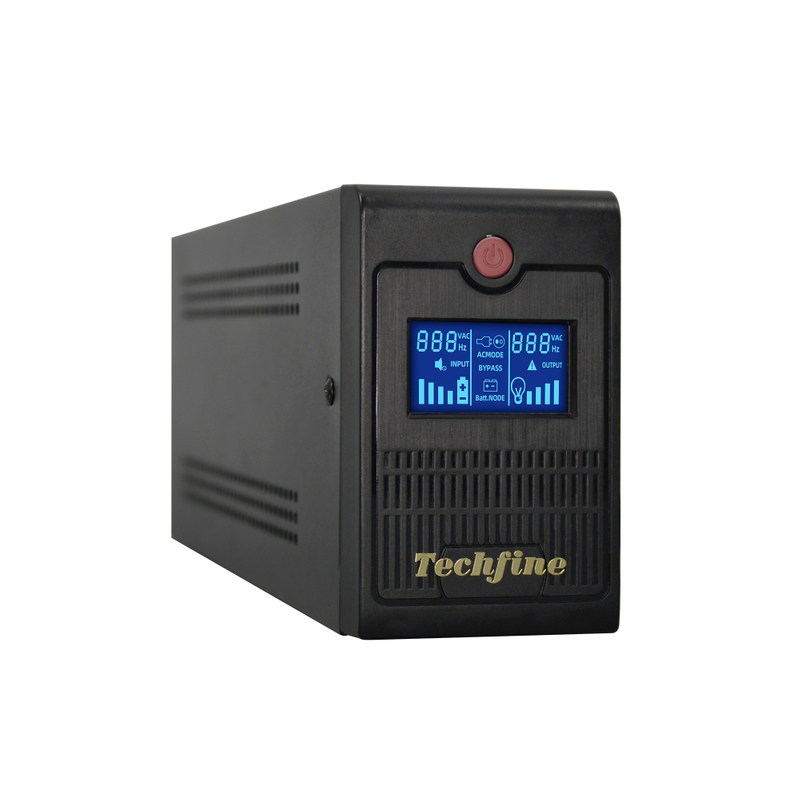

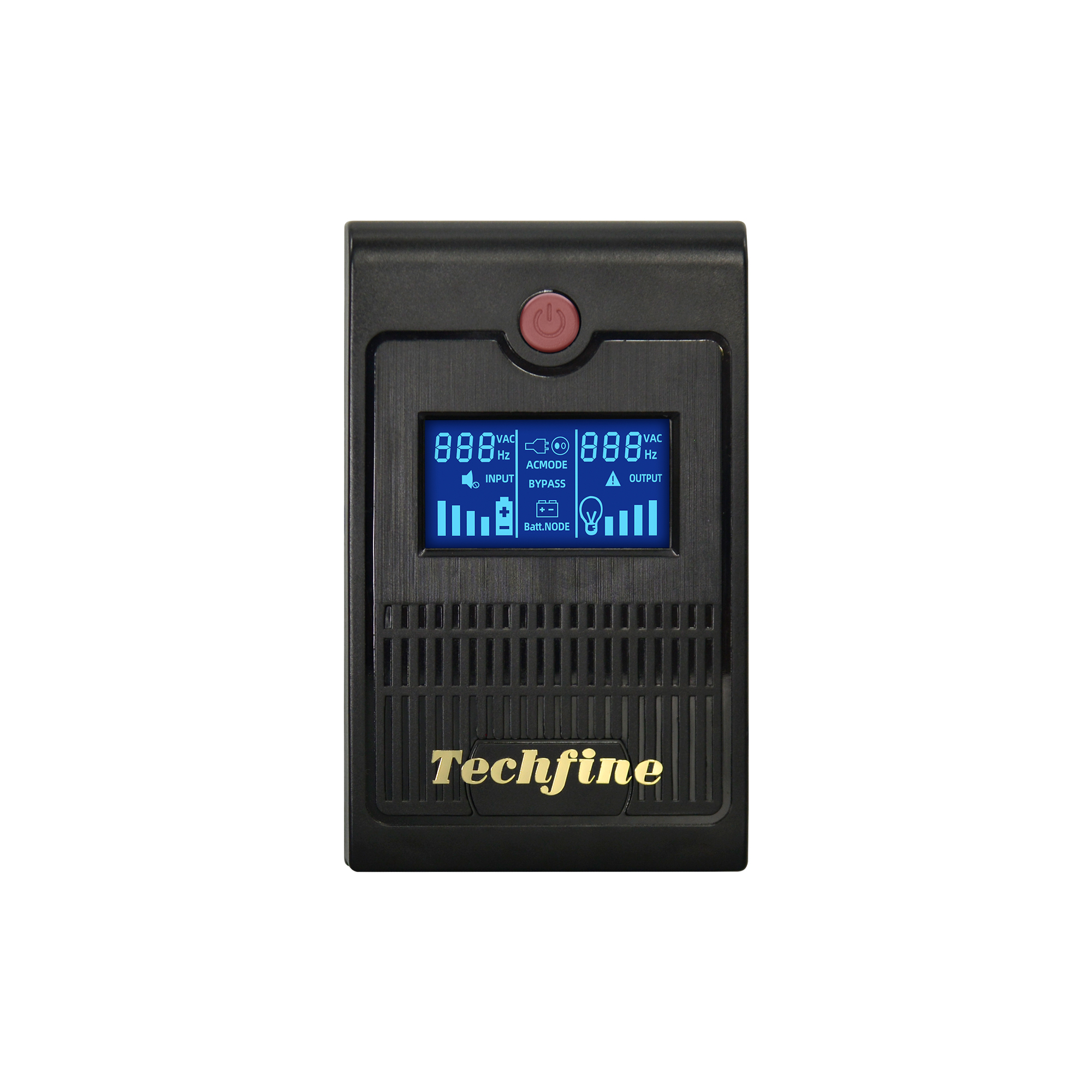

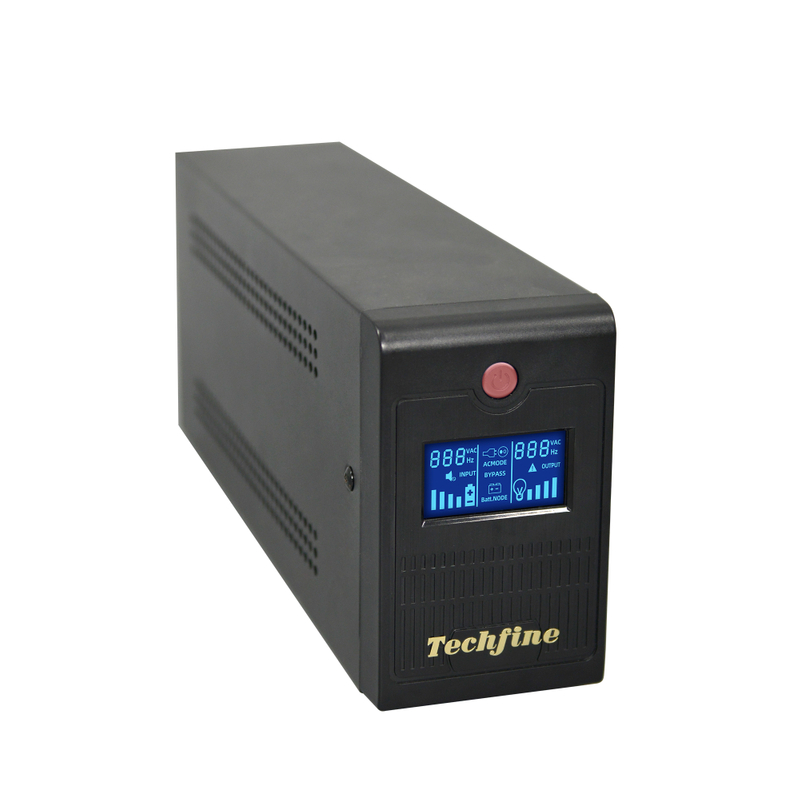

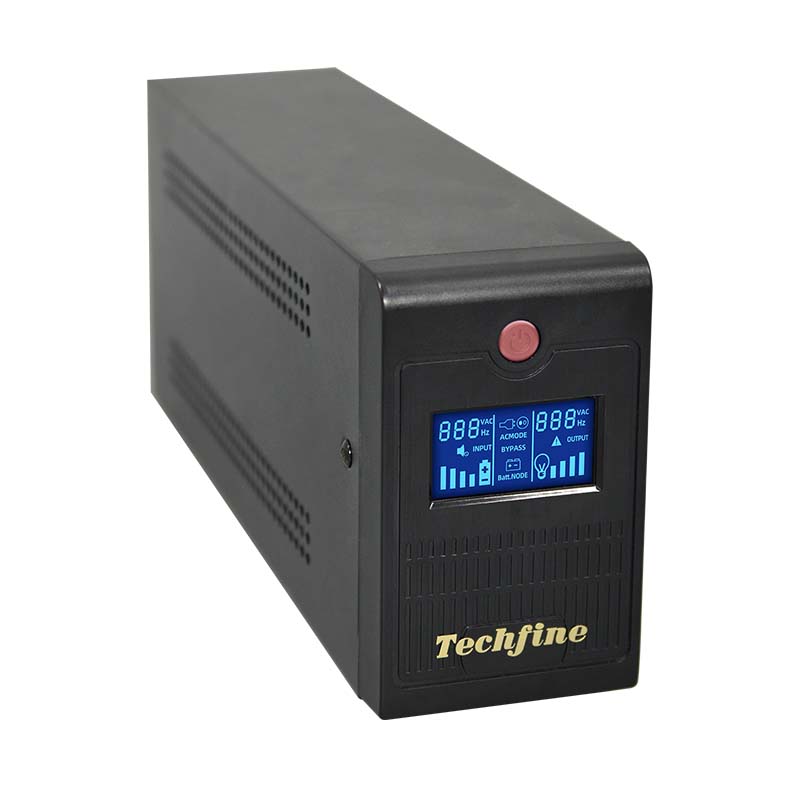

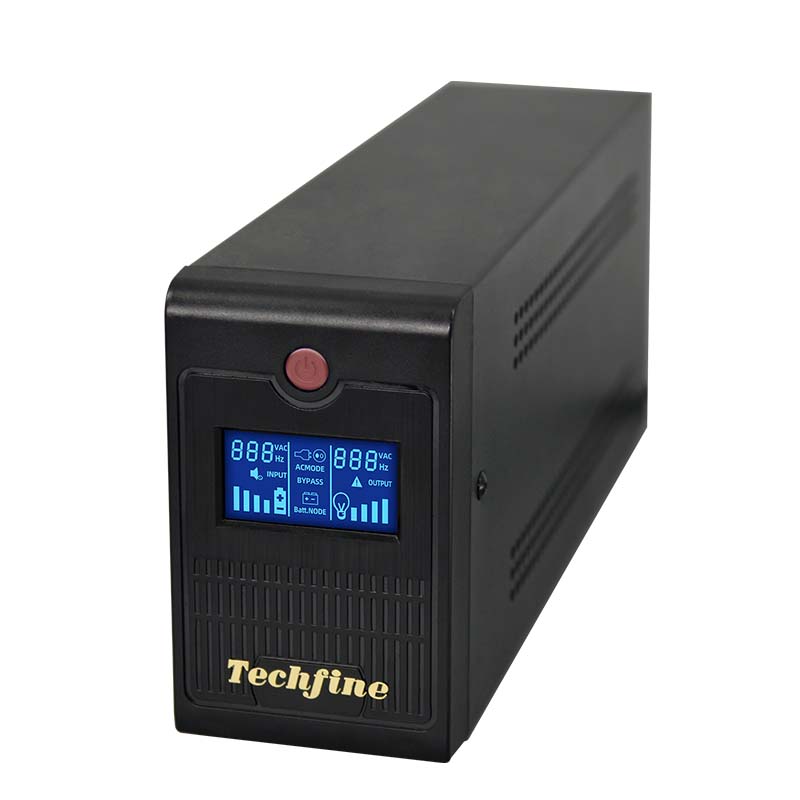

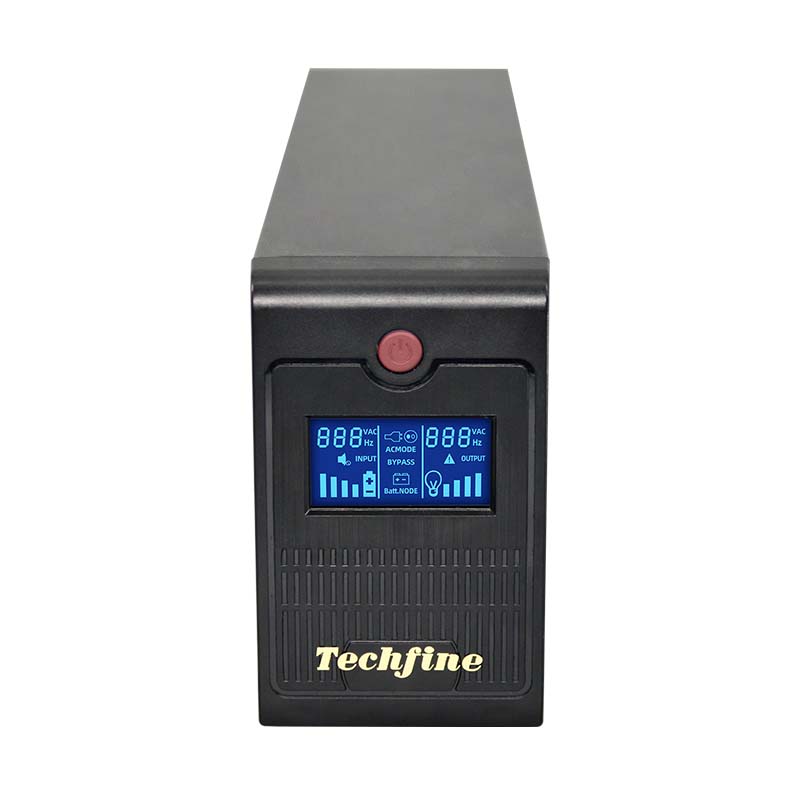

Offline UPS 650va 800va 1000va 1200va 1500va 2000va 50HZ/60HZ for Pc Computer

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;

Feature:

Cold start function
Output modified sine wave
Mains restart function
Automatic charge in off-mode

Feature：

1.Simple, compact and generous machine appearance

2. Super wide mains input range

3. Mains restart function

4. Output modified sine wave

5. Automatic charge in off-mode

6 Cold start function

7. Compatible generators

offline ups Q650 series detail

Model	650VA
Capacity	650VA /360W
Input
Voltage	220VAC
AC Mains Input Voltage Range	145-280 VAC (same as AC mains)
Frequency	50 Hz
Output
Voltage Range(Battery Mode)	±10%
Frequency Range(Battery Mode)	50 Hz ±1 Hz
Transfer Time	＜6ms
Waveform(Battery)	Modified sine wave
Battery
Battery Type & Quantity	12V7.2Ah x 1
Battery Charging Tiime	6 hours charge to 90%
LED Indicators
AC Mode	Green light
Battery Mode	Red light flash
Audible Alarm
Battery Mode	Alarm beeps every six seconds
Low Battery	Alarm beeps every second
Overload	Alarm beeps twice every second
Fault	Alarm beeps continuously
Protection Function
Comprehensive Protection	Overload, deep discharge and over-charge protection
Environment
Temperature And Humidity	Relative humidity 0-90% and temperature 0- 40°C (No-condensing)
Noise	less than 40dB at one meter distance
Physical Function
Dimensions (mm)	33587143
Net Weight (kgs)	4.6

Model	650VA
Capacity	650VA /360W
Input
Voltage	220VAC
AC Mains Input Voltage Range	145-280 VAC (same as AC mains)
Frequency	50 Hz
Output
Voltage Range(Battery Mode)	±10%
Frequency Range(Battery Mode)	50 Hz ±1 Hz
Transfer Time	＜6ms
Waveform(Battery)	Modified sine wave
Battery
Battery Type & Quantity	12V7.2Ah x 1
Battery Charging Tiime	6 hours charge to 90%
LED Indicators
AC Mode	Green light
Battery Mode	Red light flash
Audible Alarm
Battery Mode	Alarm beeps every six seconds
Low Battery	Alarm beeps every second
Overload	Alarm beeps twice every second
Fault	Alarm beeps continuously
Protection Function
Comprehensive Protection	Overload, deep discharge and over-charge protection
Environment
Temperature And Humidity	Relative humidity 0-90% and temperature 0- 40°C (No-condensing)
Noise	less than 40dB at one meter distance
Physical Function
Dimensions (mm)	33587143
Net Weight (kgs)	4.6
