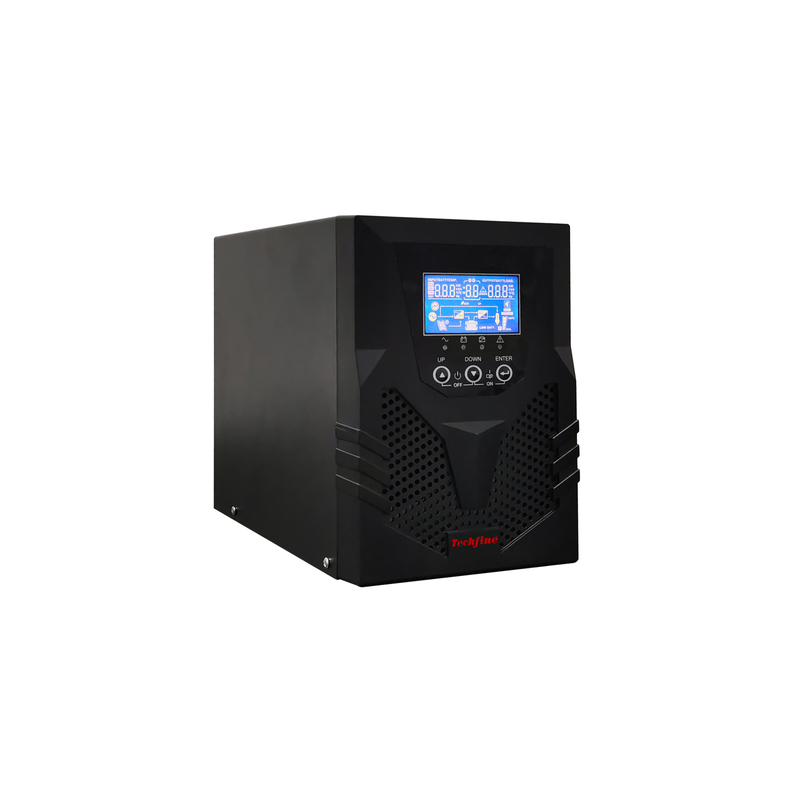

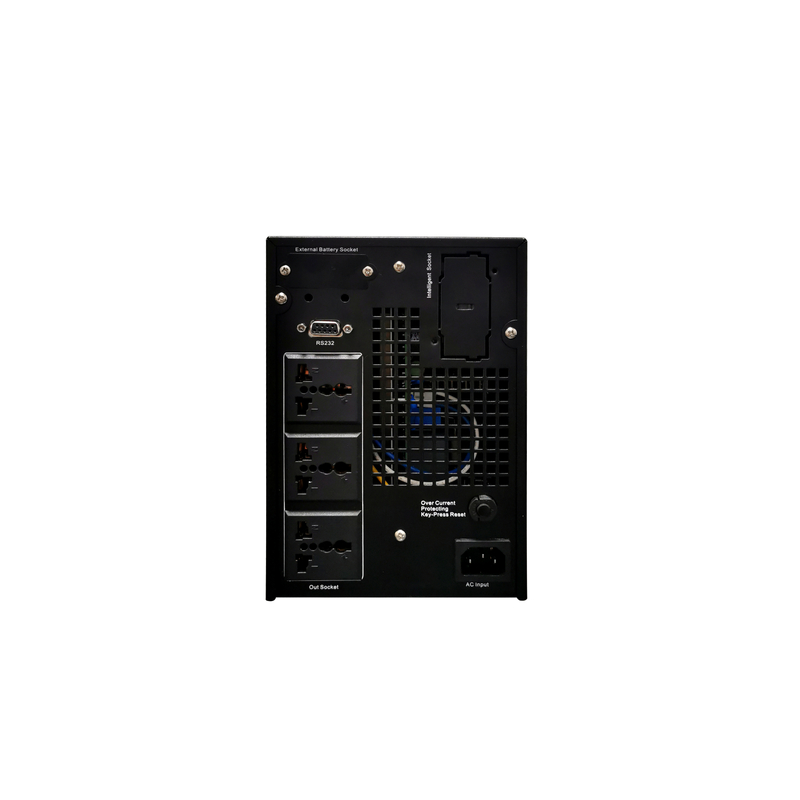

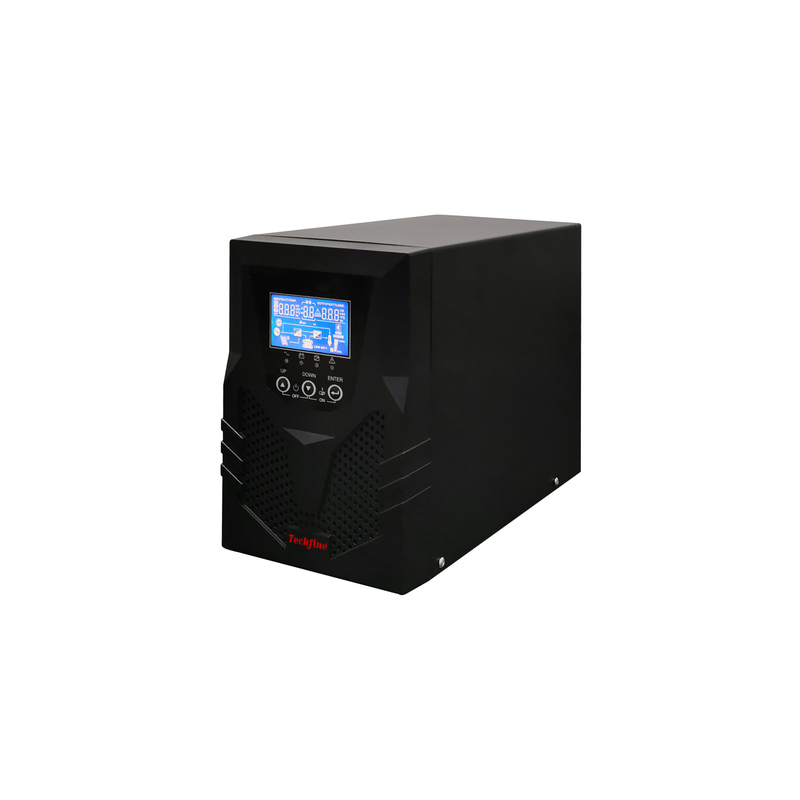

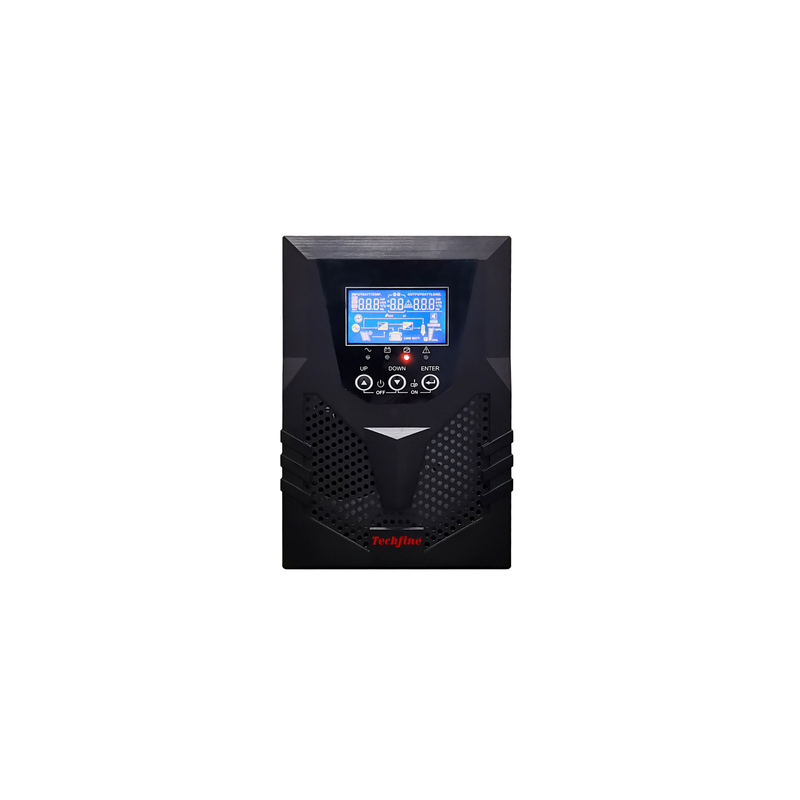

800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
Max 12 A big charge current
1.0 output power factor
Up to 95.5% high efficiency

Availability:
800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va
800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va
800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va
800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va
800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va
800w uninterruptible power supply long backup time ups power ups 1000watt ups home 1000va
  • CQ1K

  • Techfine

Feature:

  1. Pure sine wave output, online zero conversion time

  2. Wide input frequency range adjustable from 40-70HZ

  3. Output short circuit protection and overload protection

  4. Full-time lightning protection, noise and surge protection

  5. The LCD screen is to display the status parameters at a glance

  6. The RS232 communication interface is applied

  7. Double-sided circuit board design with higher safety and reliability

  8. Various common technical parameters can be set on the panel

Online UPS CQ Series Detail

ModelsCQ1K   (S)
PhaseSingle-phase
Capacity1K   VA / 1KW
Input
Voltage   range110   - 300VAC
Frequency   range50HZ/60HZ
Power   factor1
Output
Output   voltage220VAC±1%   (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional
Frequency   range (battery mode)50   Hz (60HZ selectable)± 0.25 Hz
Transfer0ms
time
Wave   formPure   sine wave
Battery
StandardBattery   model12V   / 7AH(Standar) 12V /9AH(Optional)
Quantity/DC   Voltage2PCS/24VDC
Max.   charging current1.0A   (Maximum)
Long-runBattery   modelDepends   on the users
DC   Voltage36VDC
Max.   charging current1A,   2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable
LCD   or LED displayLoad   size, battery capacity, mains mode, battery mode, bypass mode, fault   indication
Control   managementSmart   RS-232、SNMP optional
