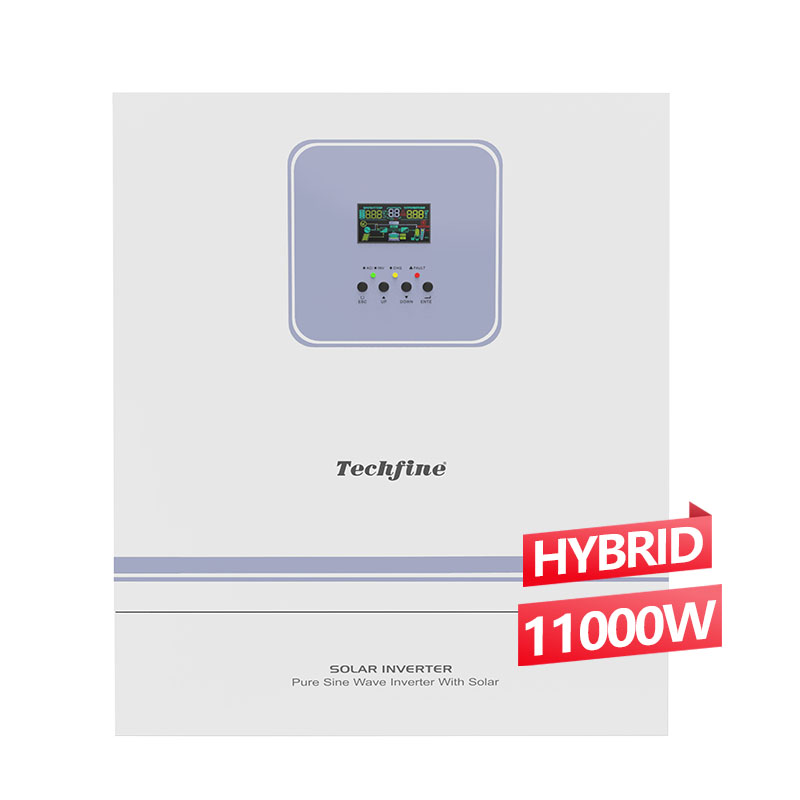

11kw 48v high frequency solar inverter support parallel

Name: 11kw 48v high frequency solar inverter support parallel
Brand: Techfine
Rating: 5.0 (37 reviews)

Tips:
Minimum order quantity (MOQ) ≥100 Pieces;
Samples can be sent for testing;

Feature:
High frequency solar inverter PF1.0
Parallel Function Up to Maximum 9 Units

Availability:



Inquiry

Model:
GA11048JMH
Brand:
Techfine

Feature:
•High Frequency,Light Weight
•Output Power Factor: PF=1
•Support lithium battery activation wake-upstart function
•Support Parallel operation for capacity expansion
•Real time display of load actual power
•Pure wave output, adapt with different load
•Output short circuit protection
•Optional WIFI remote monitoring
•Specification adjustment

GA11048JMH详情

off-grid solar inverter hybrid solar inverter residential Solar Inverter Home Used Solar Inverter Electricity Saving Solar Inverter Pure Sine Wave Solar Inverter

QUICK LINKS

PRODUCTS

CONTACT US

techfinesolar001@gmail.com

3rd Floor, Hongxingzhiye Building 3, No.6 Foluo Road, Luocun Town, NanHai District, Foshan, Guangdong,China.

INQUIRY NOW

Leave a Message

Model		GA11048JMH
	Nominal Voltage	220/230/240VAC
	Voltage Range	90-280VAC±3V（Inverter Mode) 170-280VAC±3V（UPS Mode）
	Frequency	50Hz/60Hz(Auto Adaptive)
Output	Rated Power	11000W
	Output Voltage	220/230/240VAC±5%
	Frequency	50/60Hz±0.1%
	Waveform	Pure Sine Wave
	Transfer Time(Adjustment)	10ms typical, 20ms Max
	Peak Power	22000VA
	Overload Capacity(Battery Mode)	1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load
	Peak Efficient（Battery Mode）	98%
Battery	Norminal Voltage	48VDC
	Constant charge voltage（Adjustment）	56.4VDC
	Floating charge voltage（Adjustment）	54VDC
Charger	Maximun PV Input Power	2*5500W
	MPPT Controller Voltage	90-500VDC
	Maximum PV Input Voltage	500VDC
	Maximum PV Charging Current	MPPT 150A
	Maximum AC Charging Current	60A
	Maximum Charging Current	150A
Display	LCD Display	AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage, Output Frequency, Battery Voltage,Load Current,etc.
Interface	RS232	5PIN/Pitch2.0mm
	Expansion slot communication interface	2×5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFI, etc
	Parallel Interface	Optional，MAX 9PCS
Operating Environment	Operating Temperature	0~40℃
	Humidity	20%~95%（Non-condensing）
	Storage Temperature	-15~60℃
	Altitude	<1000m
	Accoustic Noise(db)	≤50dB
