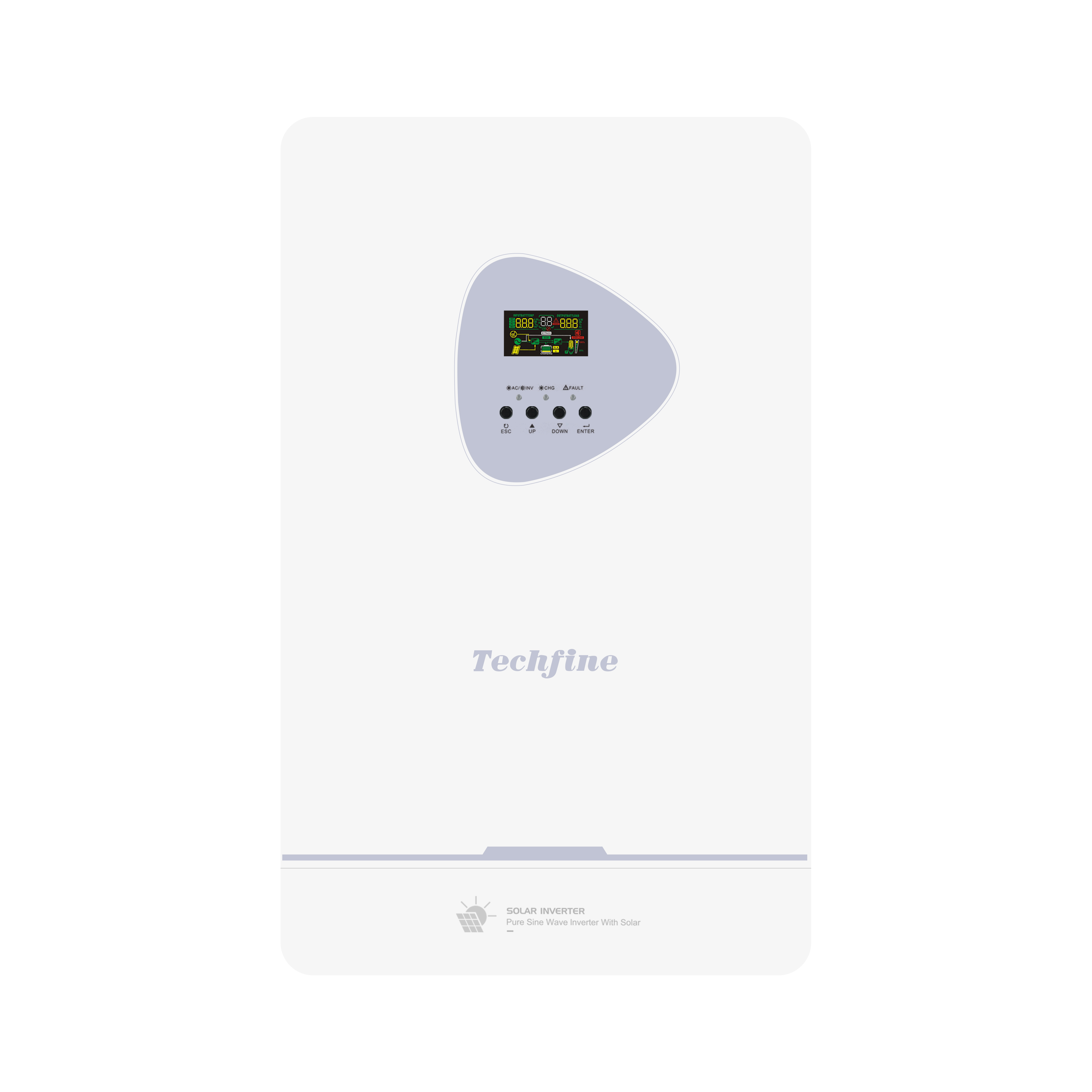

11KW Solar Inverter Hybrid Solar Power Solar Inverter 48v

Name: 11KW Solar Inverter Hybrid Solar Power Solar Inverter 48v
Brand: Techfine
Rating: 5.0 (31 reviews)

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥100 Pieces;
Feature:
•Cost-effective solution design
•Rounded corner design, exquisite appearance
•Multiple parameters can be adjusted according to user needs to adapt to different occasions
•Power below 3KW does not support battery-free mode
•Support lithium battery communication, external WIFI, generator self-start dry contact function
•Real-time display of actual load power greatly improves user perception
•Pure sine wave output, can adapt to different loads
•Output short-circuit protection function
•Parallel design is not supported.

Availability:



Inquiry

Model:
EA11048EMH
Brand:
Techfine

Techfine 11KW Hybrid Solar Inverter 48V - Reliable Power Solution

The Techfine 11KW Solar Inverter offers powerful energy conversion with pure sine wave output, making it ideal for various load types. Designed for efficiency, this hybrid solar inverter 48V supports lithium battery communication, external Wi-Fi, and generator self-start functionality. With a real-time load display and cost-effective design, it’s perfect for both residential and commercial use. Explore reliable and durable solar inverters for sale, providing seamless integration into your solar power system with superior performance.

Techfine Cost-effective Solar Hybrid Inverter EA Series-Product Details (6)

11kw solar inverter hybrid solar inverter 48v solar inverter inverter solar power solar inverter for sale

Model			EA11048EMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（正normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	11000W
		Photovoltaic Inverter	11000W
	Peak Power		22000W
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Grid feeding voltage range		195-253VA
	Grid feeding frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		47.8A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		48Vdc
	Constant voltage charging voltage (configurable)		56.4Vdc
	Float charging voltage (configurable)		54Vdc
Charger	PV charging method		dual MPPT
	Maximum input power of PV		2×5500W
	MPPT input voltage range		90~500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		18A/18A
	Maximum PV charging current		150A
	Maximum mains charging current		150A
	Maximum charging current		150A
Display	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		Parallel (network) function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	Noise		≤50db
Physical parameters	Depth × width × height (mm)		601x360x163.5
	Weight (for reference) KG		19.3
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Model			EA11048EMH
Input	Input format		L+N+PE
	Rated input voltage		220/230/240VAC
	Voltage range		90-280VAC±3V（正normal mode) 170-280VAC±3V（UPS mode）
	Frequency range		50Hz/60Hz(Adaptive)
Output	Rated Power	Battery Inverter	11000W
		Photovoltaic Inverter	11000W
	Peak Power		22000W
	Output voltage		220/230/240VAC±5%
	Output frequency		50/60Hz±0.1%
	Waveform		Pure sine wave
	Switching time (adjustable)		Computer equipment 10ms, home appliances 20ms
	Overload capacity		Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load
Grid-connected operation	Output voltage		220/230/240VAC
	Grid feeding voltage range		195-253VA
	Grid feeding frequency range		49-51±1Hz/59-61±1Hz
	Nominal output current		47.8A
	Power factor range		>0.99
	Maximum conversion efficiency (DC/AC)		98%
Battery	Rated voltage		48Vdc
	Constant voltage charging voltage (configurable)		56.4Vdc
	Float charging voltage (configurable)		54Vdc
Charger	PV charging method		dual MPPT
	Maximum input power of PV		2×5500W
	MPPT input voltage range		90~500Vdc
	Optimal Vmp operating range		300~400Vdc
	Maximum PV input voltage		500Vdc
	Maximum PV input current		18A/18A
	Maximum PV charging current		150A
	Maximum mains charging current		150A
	Maximum charging current		150A
Display	LCD Interface		Can display operation mode/load/input/output, etc.
Interface	RS232		Baud rate 2400
	Expansion slot communication interface		Lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface		Parallel (network) function
Environmental parameters	Operating ambient temperature		-10~50℃
	Operating environment humidity		20%~95%(No condensation)
	Storage temperature		-15~60℃
	Altitude		The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040
	Noise		≤50db
Physical parameters	Depth × width × height (mm)		601x360x163.5
	Weight (for reference) KG		19.3
Standards and certifications			EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
