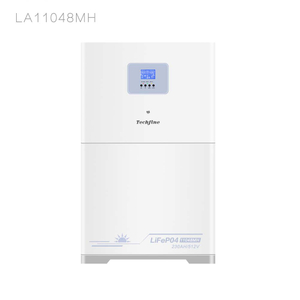

| Inverter-Lithium Battery Integrated Machine LD Series Technical Parameters (Selection Guide) |
| Inverter Model | LD11048JMH |
| rated power | 11000VA/11000W |
| Input |
| Voltage | 230VAC |
| Voltage range | 170-280VAC(UPSmodel)90-280VAC(Inverter Mode) |
| Frequency Range | 50Hz/60Hz(Automatic adaptation) |
| Output |
| The output voltage | 230VAC±5% |
| Peak Power | 22000VA |
| Conversion efficiency (maximum) | 94% |
| Output frequency | 50/60Hz±0.1% |
| Switching time | 10ms (computer equipment), 30ms (home appliances) |
| Output waveform | Sine Wave |
| Load loss | ＜80W |
| Solar charging and mains charging |
| Solar charging method | MPPT |
| PV maximum input power | 2×5500W |
| MPPT input voltage range | 90-500Vdc |
| Maximum PV charging current | 150A |
| Maximum AC charging current | 120A |
| Maximum charging current | 150A |
| Physical parameters |
| L×W×H (product dimensions) | 650×260×470 |
| Net weight (NW Kg) | 15 |
|
|
| battery model | LD230AH/51.2V/200E |
| Battery capacity | 11776WH |
| Battery voltage | 51.2VDC |
| Battery Type | Lithium Iron Phosphate (LiFePo4) |
| Full charge voltage (FC) | 56V |
| Full discharge voltage (FD) | 42V |
| Maximum continuous discharge current | 200A |
| Maximum discharge current | 230A(1 minute) |
| Protect | BMS, Circuit Breaker |
| Charging voltage | 56V |
| Charging current (recommended) | 115A(0.5C) |
| Charging current (maximum) | 200A |
| L×W×H (product dimensions) | 650×260×560 |
| Net weight (NW Kg) | 110 |
